Simulador de inductor (CIR13580S)

Written by: Newton C. Braga
Category: Banco de circuitos

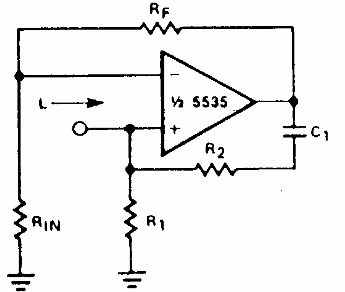

     Signetics sugirió este circuito en una documentación de la década de 1980. El operacional es antiguo, pero la configuración es verdadera para cualquier operacional. La inductancia viene dada por L = R1R2C.



Simulador de inductor
Simulador de inductor
