Comparador con Histeresis LM324 (CIR1780S )

Written by: Newton C. Braga
Category: Banco de circuitos

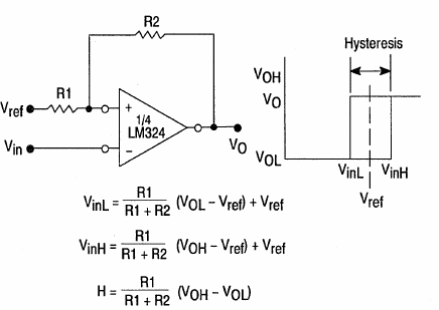

Encontramos este circuito en el handbook Linear Interfaz IC de Motorola de 1993. Las fórmulas junto al diagrama permiten encontrar los valores de los componentes para el desempeño deseado.
