Luz de emergencia con cargador (CIR17793S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito puede usar un acumulador de 6 o 12 V o baterías Nicad. Para acumuladores de 6 o 12 V, R2 tendrá los valores indicados en el texto. Para las baterías Nicad debe aumentarse a 120 ohms x 1 W. El circuito mantiene una batería cargada hasta el momento en que se corta la energía. En este punto, el relé conmuta y hace que se encienda la lámpara L1. La lámpara especificada es para una batería de 12 V. Para baterías más pequeñas, se deben utilizar lámparas de menor consumo. Una posibilidad interesante es utilizar un inversor para lámpara fluorescente. El transformador tiene un secundario de 150 a 300 mA.



Luz de emergencia con cargador

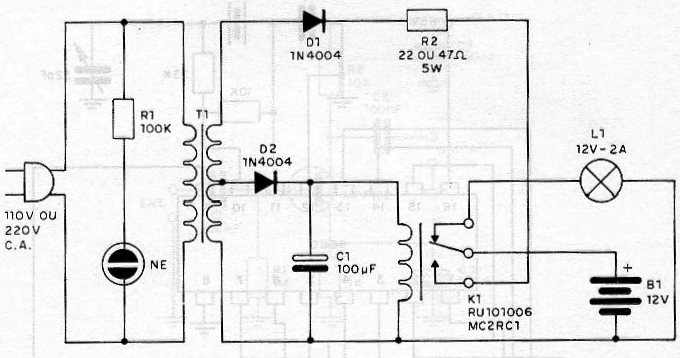

Luz de emergencia con cargador | Haga click en la imagen para ampliar |
