Paso Amplificador PNP (CIR7543S)

Written by: Newton C. Braga
Category: Banco de circuitos

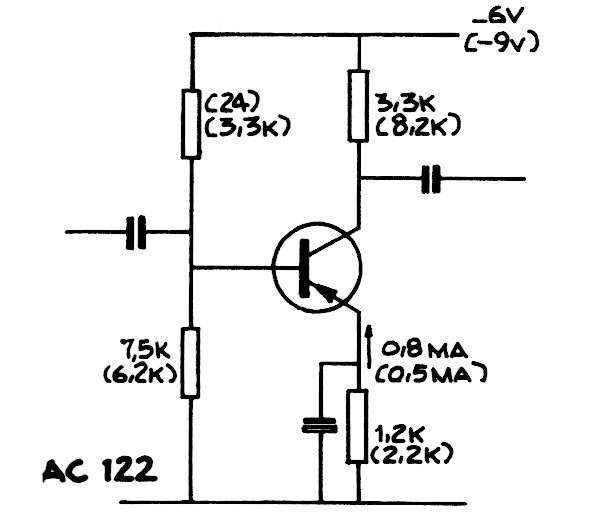

    Este circuito preamplificador de buena ganancia utiliza un transistor PNP de germanio antiguo como el AC122 o AC152. El circuito puede utilizar transistores de silicio modernos con pequeños cambios en los resistores de polarización de base.
