Foto Tiristor Simulado (CIR5347S)

Written by: Newton C. Braga
Category: Banco de circuitos

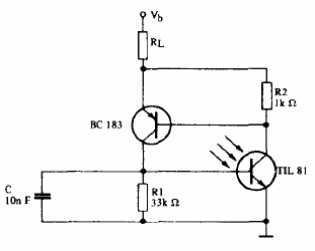

   El circuito mostrado en la figura simula un SCR con dos transistores complementarios, siendo uno de ellos un foto-transistor. El bipolar puede ser el BC558. El circuito es de un manual de optoelectrónica de Texas Instruments.
