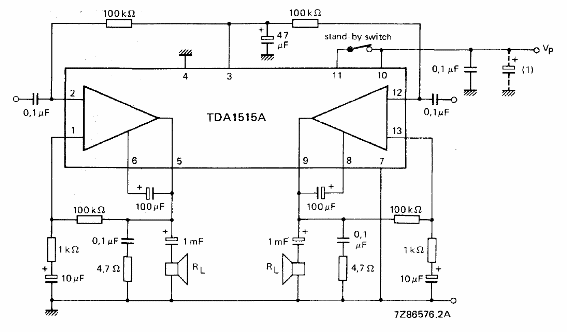

Amplificador Automotor de 12 W por Canal TDA1515A (CIR4849S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Esta configuración bastante conocida, por ser usada en muchas autorradios, es del Data Book de Philips de 1990. El circuito puede ser alimentado por tensiones de 6 a 12 V. El TDA debe montarse en buen radiador de calor.
