Monitor de Carga y Alarma (CIR889S)

Written by: Newton C. Braga
Category: Banco de circuitos

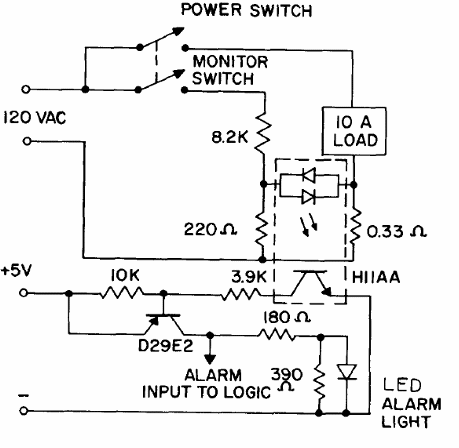

Este circuito utiliza un acoplador óptico de GE. Pueden ser experimentados equivalentes. El circuito es del manual de semiconductores de GE de 1977.
