Semáforo Simple (CIR7687S)

Written by: Newton C. Braga
Category: Banco de circuitos

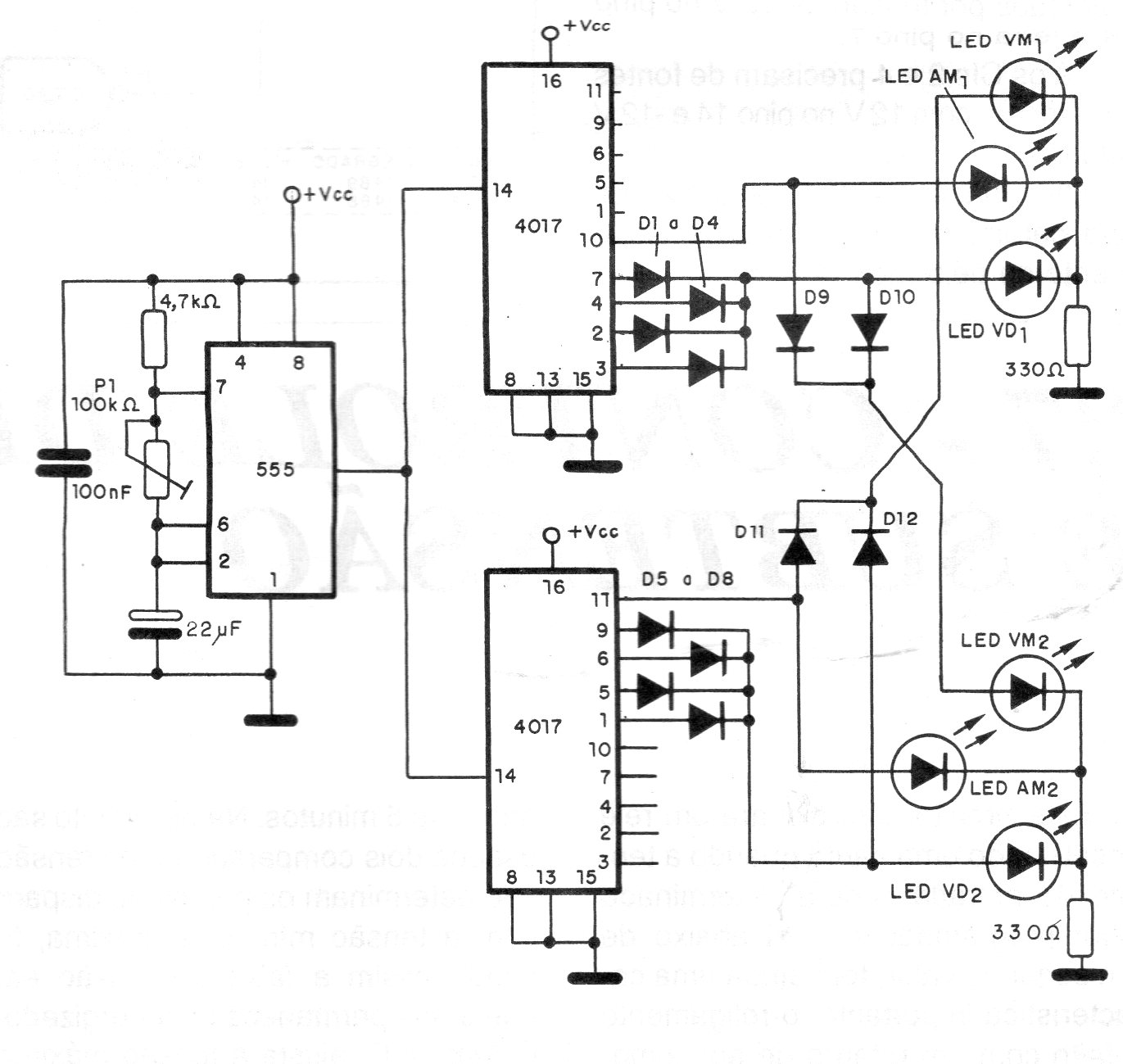

     Este circuito controla 6 LED en dos conjuntos con los ciclos de cambio de fases controlados por un oscilador 555. El circuito puede ser alimentado por tensiones entre 6 y 12 V.
