VCO lineal de 3 Hz a 300 kHz (CIR15773S)

Written by: Newton C. Braga
Category: Historia



    Este circuito se encontró en una Electronics Engineering de los años 90. Los circuitos integrados son de la época y los diodos son de propósito general. La señal generada es sinusoidal.

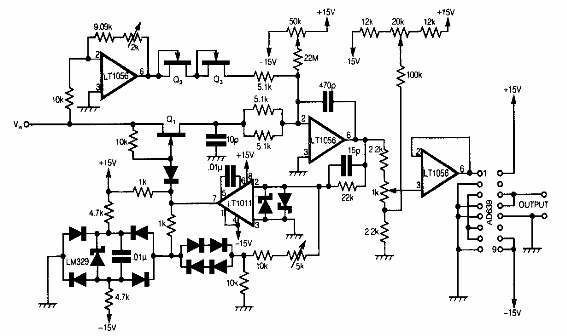

VCO lineal de 3 Hz a 300 kHz
VCO lineal de 3 Hz a 300 kHz
