Mixer TL081 (Mezclador TL081) (CIR166S)

Written by: Newton C. Braga
Category: Banco de circuitos

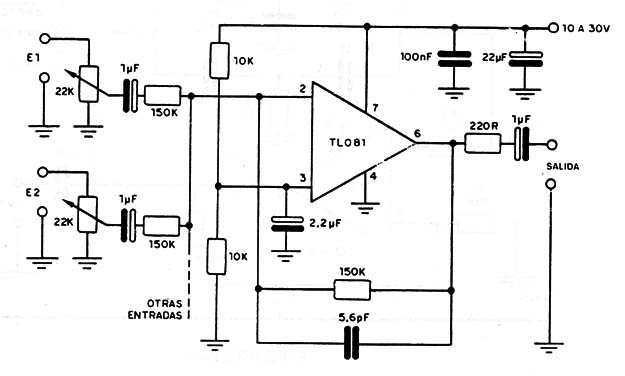

Este mixer emplea un amplificador operacional con FET en la entrada (Texas lns.) y presenta una excelente ganancia determinada por el resistor de 150k en el circuito de realimentación. Se diseñaron sólo dos entradas, pero puede aumentarse su número hasta 10 sin problemas. Los resistores son de 1/8 W y las conexiones de entrada y de salida deben ser blindadas.



Mixer TL081 (Mezclador TL081)
Mixer TL081 (Mezclador TL081)
