Comparador de señales de CA (CIR19477S)

Written by: Newton C. Braga
Category: Banco de circuitos

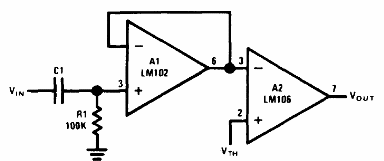

El circuito que se muestra en la figura se puede diseñar con operacionales más modernos, ya que es de la documentación de 1994 de National Semiconductor. La fuente de alimentación debe ser simétrica.



Comparador de señales de CA
Comparador de señales de CA
