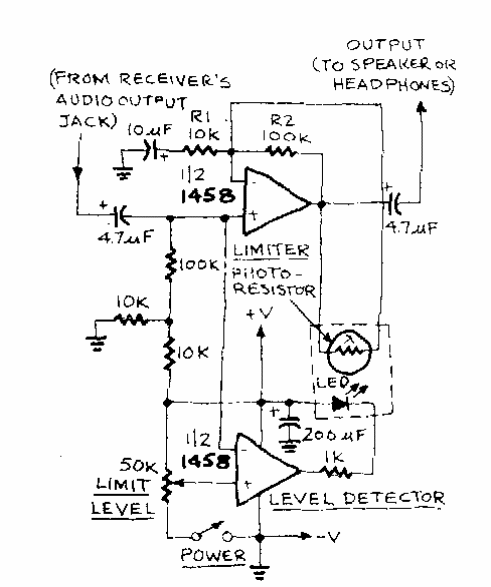

Encontramos este circuito en una Radio Electronics de los 80. El circuito utiliza un acoplador óptico LDR. El operacional puede ser el 741 ya que el original es una versión doble de esto, y la fuente de alimentación debe ser simétrica.



Limitador de audio
Limitador de audio
