Puerta AND Usando NOR CMOS (CIR10429S)

Written by: Newton C. Braga
Category: Banco de circuitos

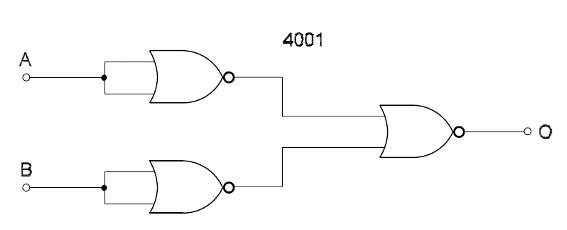

Este circuito muestra cómo obtener la función AND (E) usando tres puertas NOR del circuito integrado 4001. El circuito se obtuvo en el libro CMOS Sourcebook de Newton C. Braga, publicado en los Estados Unidos.
