Amplificador transistorizado (CIR3665S)

Written by: Newton C. Braga
Category: Banco de circuitos

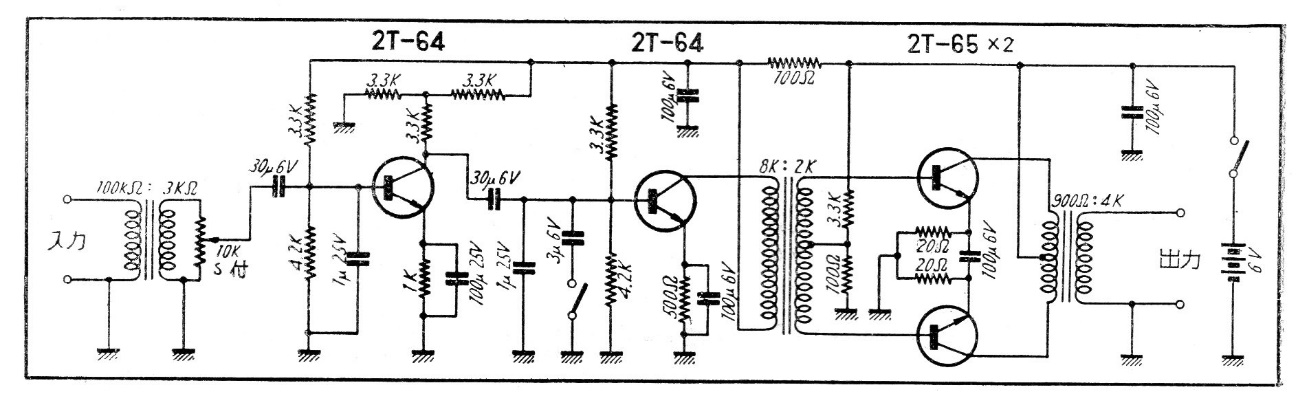

Este amplificador de baja potencia se encontró en una publicación japonesa de la década de 1960, utilizando transistores de esa época. El circuito tiene una salida push-pull con transformadores y los transistores de potencia deben montarse en disipadores de calor.




| Haga click en la imagen para ampliar |
