Puente H con Control PWM Manual (CIR279S)

Written by: Newton C. Braga
Category: Banco de circuitos

Este shield para control de motor en puente H tiene un circuito de disparo adicional para control PWM. Este control es manual, en principio, por un potenciómetro, pero puede ser utilizado un sensor resistivo que luego determinará la velocidad del motor. Un robot que sigue la luz, por ejemplo, utilizando un sensor de un LDR puede obtener la aceleración cuando la fuente de luz se aproxima. El circuito debe funcionar con 5 V, ya que con tensiones menores el disparo del MOSFET puede ser problemático. Puede utilizarse cualquier MOSFET de la potencia.

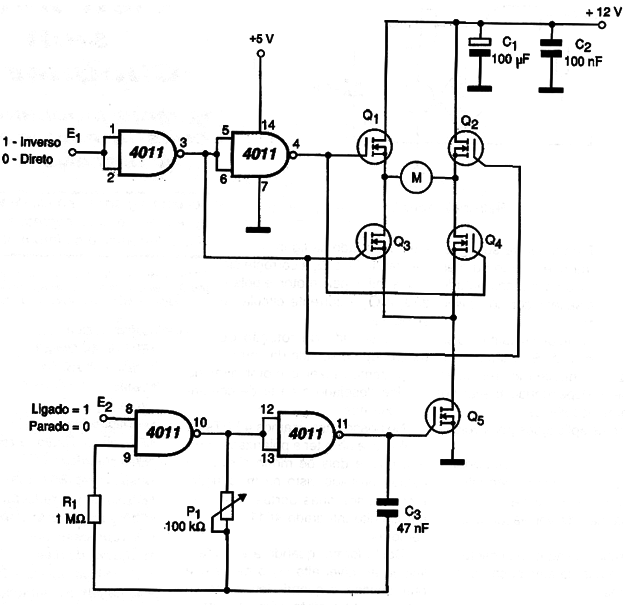

Puente H Con Control PWM Manual
Puente H Con Control PWM Manual
