Modulador de Alta Potencia (CIR255S)

Written by: Newton C. Braga
Category: Banco de circuitos

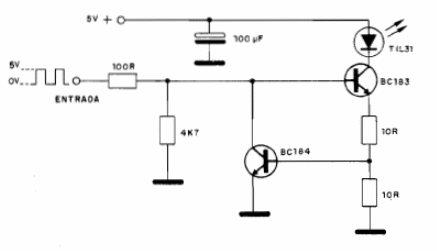

Este circuito es indicado para LEDs de alta corriente (hasta 200 mA) operando con señales TTL en uno enlace de dados por infrarrojos control remoto PWM, por ejemplo. El transistor puede ser sustituido por equivalentes como 2N2222 o 2N2218. El receptor de este transmisor es el circuito anterior (CIR254S). El circuito es sugerido por Texas Instruments en su manual de optoelectrónica.





Modulador De Alta Potencia
Modulador De Alta Potencia
