Amplificador de 2,5W (CIR194S)

Written by: Newton C. Braga
Category: Banco de circuitos

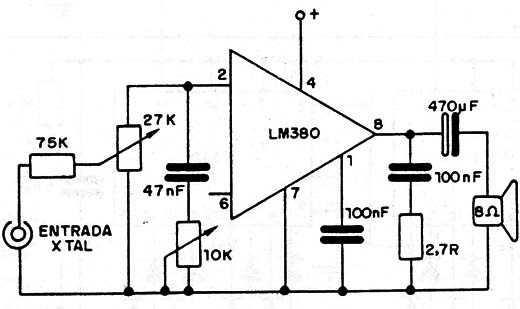

Este amplificador puede ser alimentado con tensiones entre 8V y 20V ofreciendo una potencia máxima de 2,5 W en 8 ohm. La ganancia es de 50dB y la resistencia de entrada de 150k



Amplificador de 2,5W
Amplificador de 2,5W
