Guiño de Neón (CIR165S)

Written by: Newton C. Braga
Category: Banco de circuitos

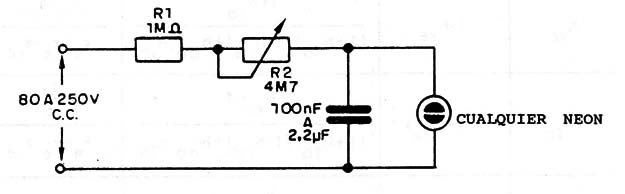

La frequência de los destellos de lámpara neón es dada por C1 que se puede alterar en largo rango de valores. Lo controle de la frecuencia se faz por P1.



Guiño de Neón
Guiño de Neón
