Metronomo (CIR146S)

Written by: Newton C. Braga
Category: Banco de circuitos

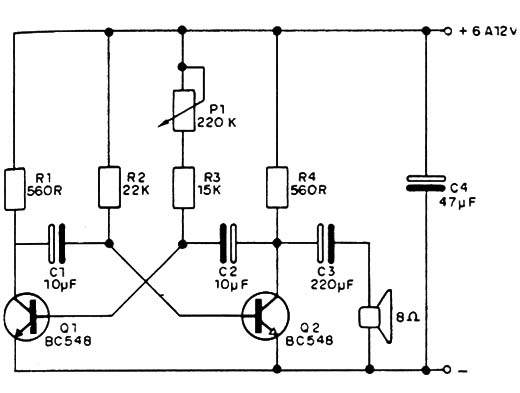

El ajuste de frecuencia de este metrónomo experimental se efectúa en P1. La banda de frecuencias está determinada por C1 y C2. Los capacitores de valores menores aumentan las frecuencias.



Metronomo
Metronomo
