Reloj Digital con mando de voz (CIR4352S)

Written by: Newton C. Braga
Category: Banco de circuitos

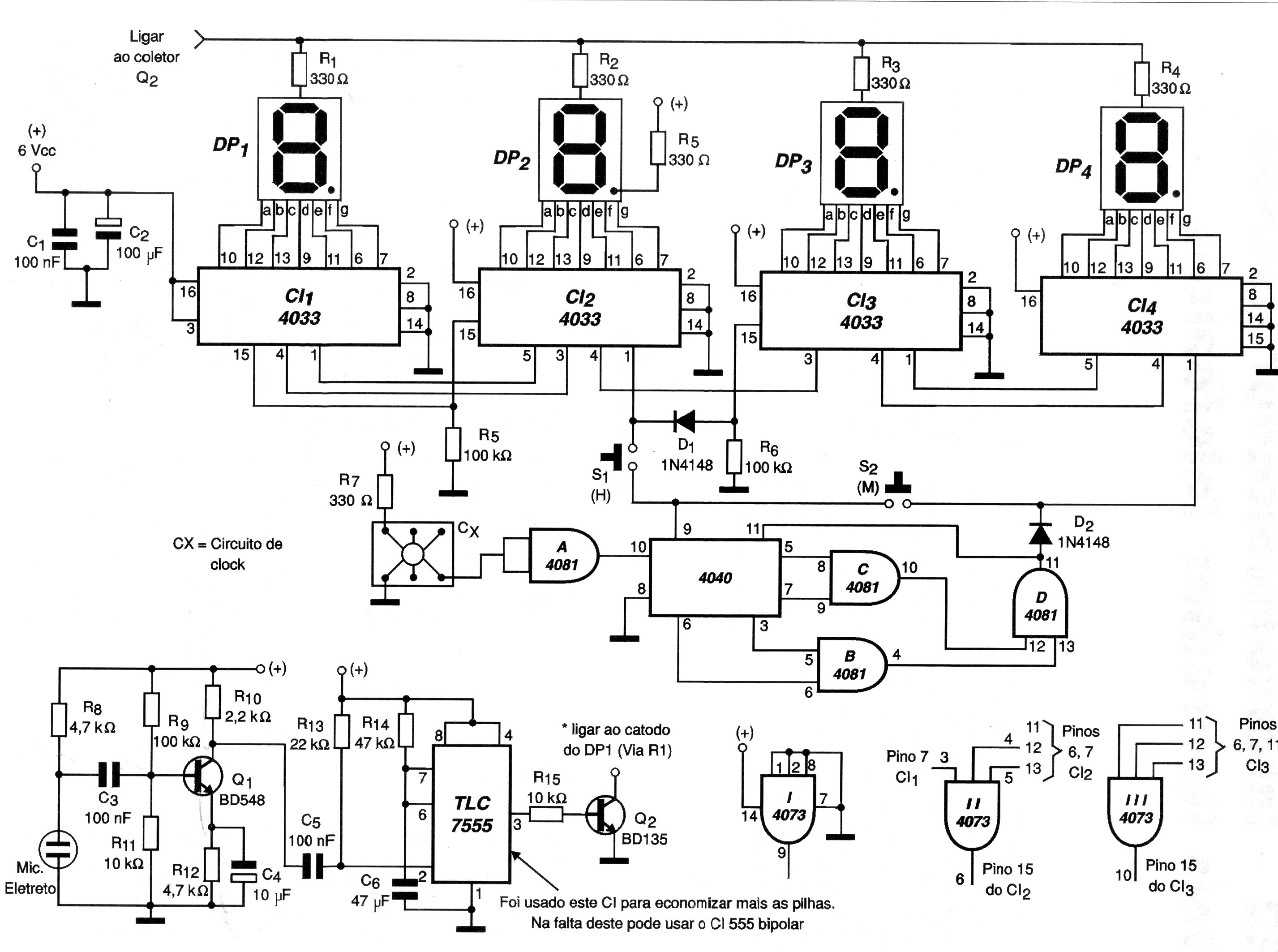

    Este reloj se encuentra en una documentación de 2001. El reloj se alimenta con 4 pilas. Para ahorrar energía los displays quedan apagados hasta el instante en que se desea ver las horas. Para ello un mando de voz o cualquier ruido (silbido, palmas, etc.) acciona la pantalla apareciendo las horas. El circuito de reloj puede ser aprovechado en el sitio entre las muchas configuraciones existentes.




| Haga click en la imagen para ampliar |
