Control de volumen DC (CIR5910S)

Written by: Newton C. Braga
Category: Banco de circuitos

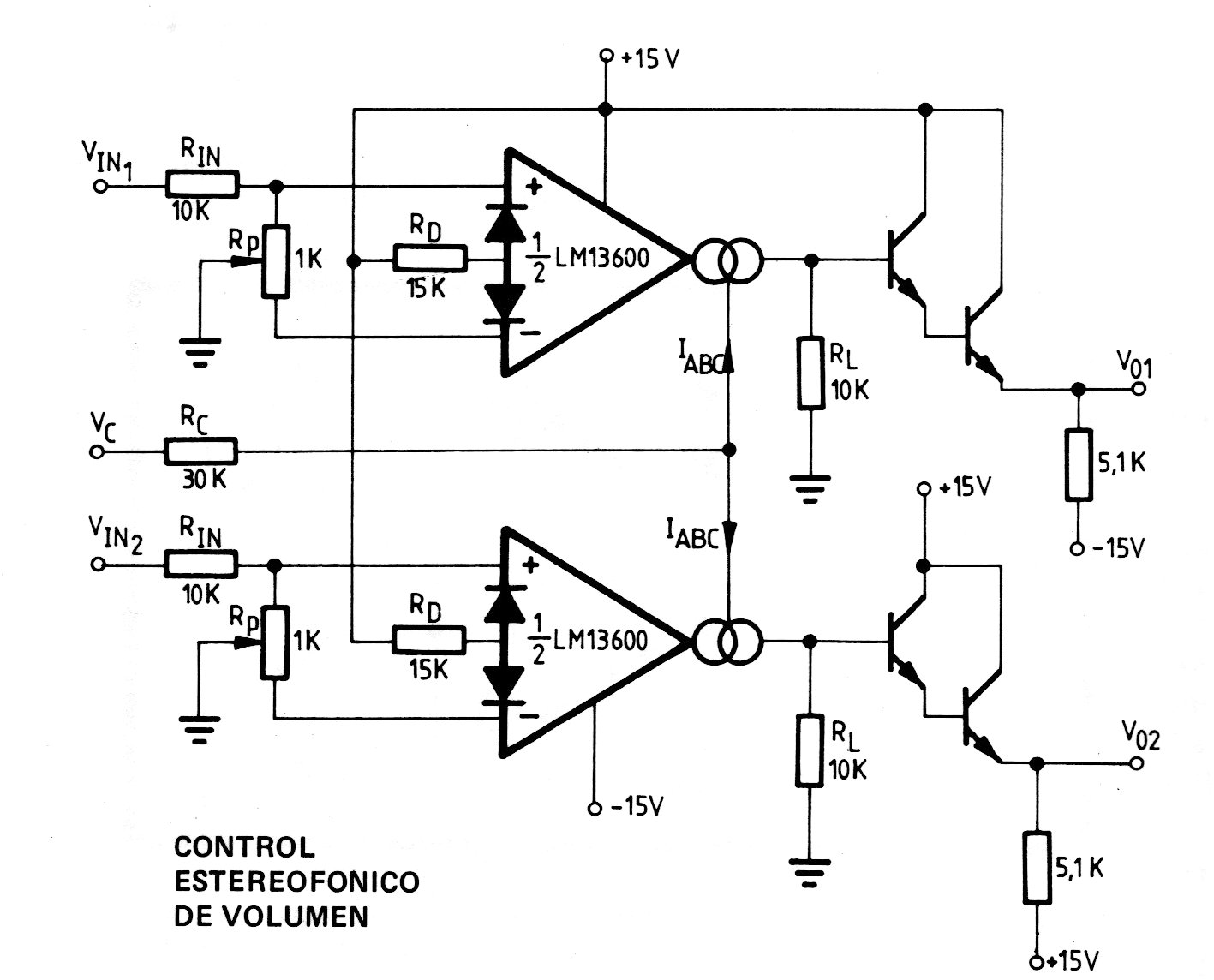

    Este control de volumen DC para dos canales utiliza un amplificador operacional de transconductancia. Los transistores pueden ser usados generalmente como los BC548 y la alimentación debe ser hecha con fuente simétrica. El circuito es de una documentación en español sobre amplificadores operacionales.




| Haga click en la imagen para ampliar |
