Llave de Toque CMOS (CIR112S)

Written by: Newton C. Braga
Category: Banco de circuitos

Con un simple toque podemos conectar y desconectar un circuito externo, usando este "driver" integrado. La conexión a tierra tiene importancia si los contactos no son dobles.

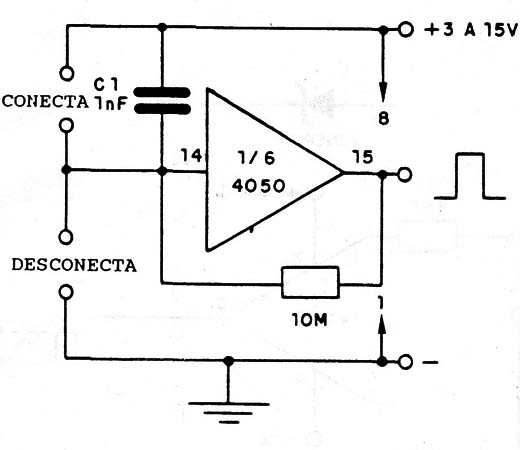

Llave de Toque CMOS
Llave de Toque CMOS
