Fuente de 12V (CIR20707S)

Written by: Newton C. Braga
Category: Banco de circuitos

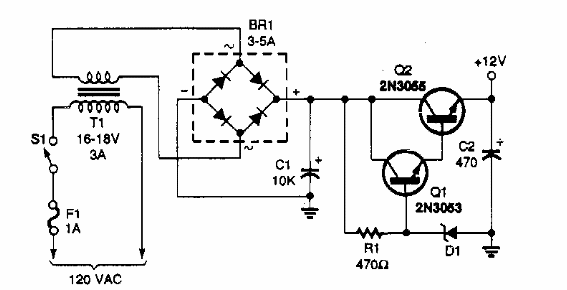

Esta sencilla fuente de alimentación de 12 V con corriente de hasta 2 A se encontró en una Popular Electronics de los años 90. El diodo Zener es de 14 V y el transistor Q2 puede ser un TIP42.



Fuente de 12V
Fuente de 12V
