Oscilador de Potencia (CIR086S)

Written by: Newton C. Braga
Category: Banco de circuitos

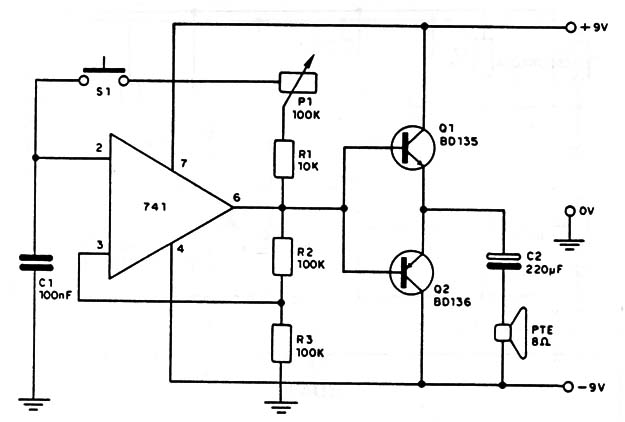

Este circuito proporciona algunos watts de sonido a un altoparlante de 8 Ω. Los transistores de salida deben montarse con disipador. La frecuencia se ajusta con P1 y también depende del valor de C1. EI oscilador entra en operación al presionar S1.
