Módulo digital de recuento (ART1199S)

Written by: Newton C. Braga
Category: Artículos Técnicos y Proyectos

Describimos el montaje de un módulo digital de dos dígitos (00 a 99) que, sin embargo, se puede ampliar a más dígitos utilizando tecnología TTL. El circuito es ideal para proyectos didácticos de contadores, cronómetros, ruletas y otros circuitos del mismo tipo.

   Los contadores con displays de 7 segmentos son circuito de extrema importancia en las aplicaciones digitales, principalmente con finalidades didácticas.

  El proyecto presentado tiene latch y utiliza displays de 7 segmentos del tipo LED con ánodo común, siendo alimentado por una tensión de 5 V.

   En nuestra versión, daremos la posibilidad de que la placa con los displays sea separada, facilitando su instalación en un panel.

   Más información sobre este tipo de contador puede ser obtenida en nuestro Curso de Electrónica Digital, en el volumen 2 en que tratamos de los contadores y en muchos artículos del sitio.



   Montaje

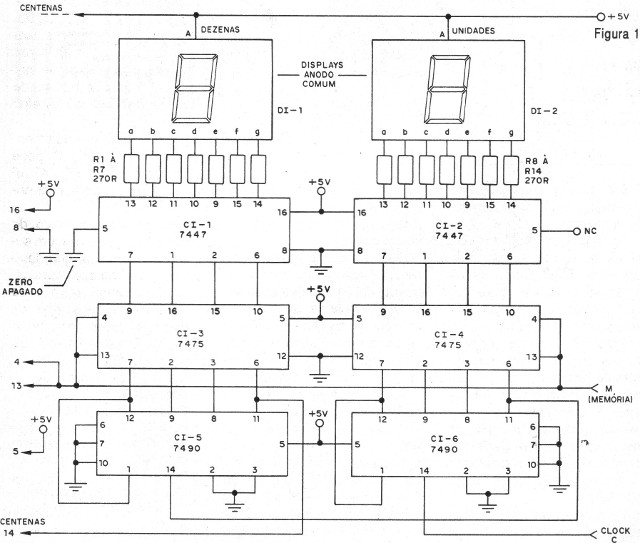

   En la figura 1 tenemos el diagrama completo del contador.



   Figura 1 - Diagrama del contador
   Figura 1 - Diagrama del contador

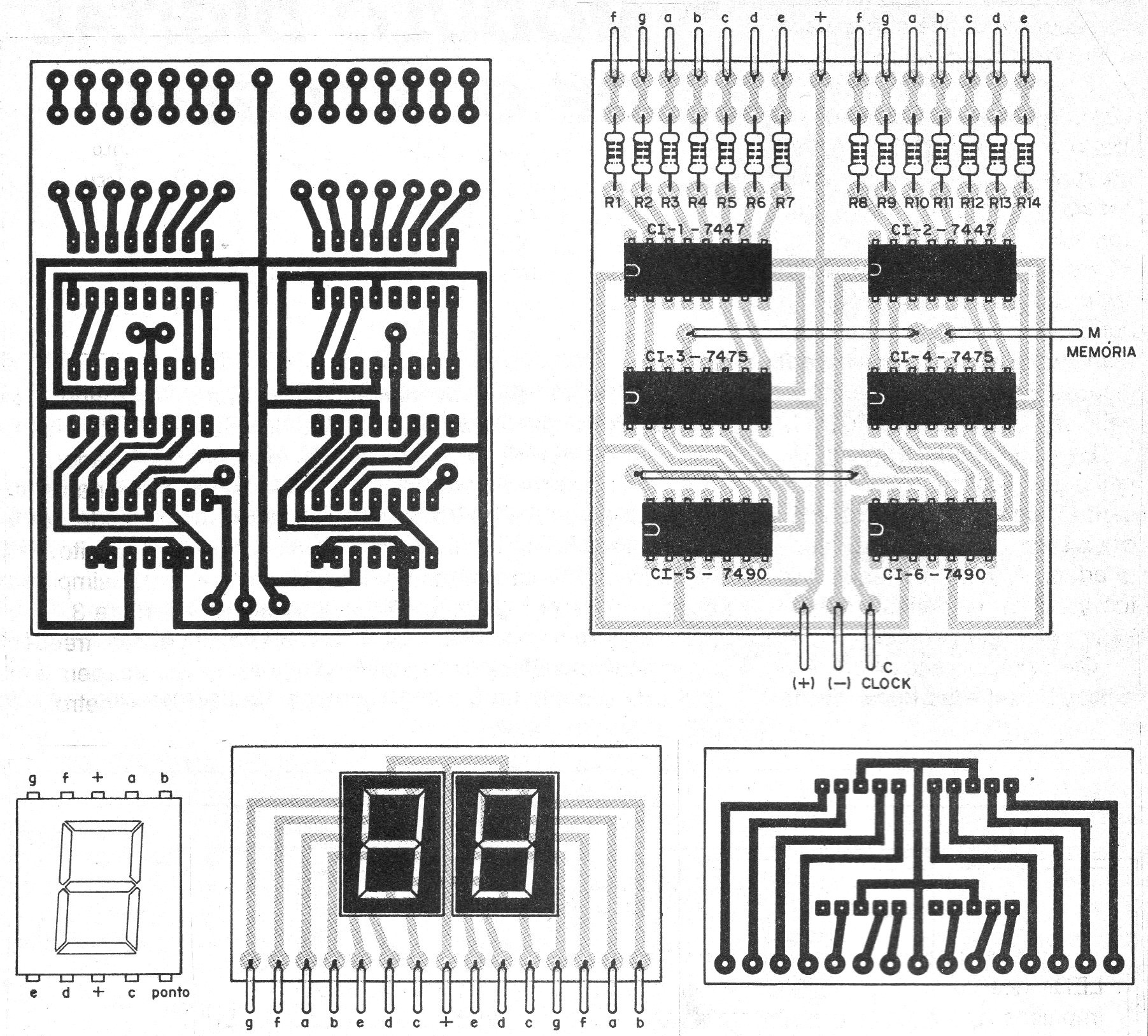

   El circuito puede ser montado en dos placas separadas, siendo una para el contador propiamente dicho, y la otra para los displays, conforme muestra la figura 2.



   Figura 2 - Placas de circuito impreso para el montaje
   Figura 2 - Placas de circuito impreso para el montaje | Haga click en la imagen para ampliar |





Dependiendo del tamaño de los displays la placa para estos componentes debe ser alterada, respetando las limitaciones correctas del controlador.

   En el montaje, la posición de los circuitos integrados debe ser observada así como de los displays que deben ser de ánodo común.

   Los resistores son de 1/8 W con cualquier tolerancia.

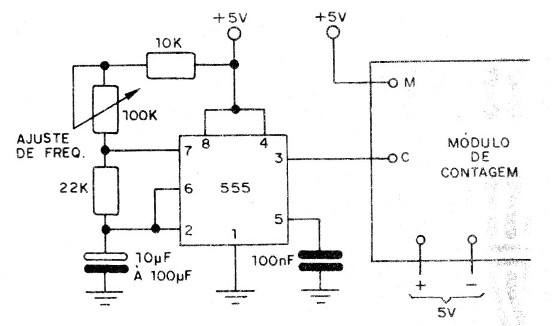

   En la figura 3 tenemos un circuito que genera pulsos de recuento para probar el contador o incluso hacer un circuito de demostración.



   Figura 3 - Circuito generador de pulsos para la cuenta
   Figura 3 - Circuito generador de pulsos para la cuenta





Observamos que la fuente de alimentación debe ser obligatoriamente de 5 V.

   En nuestro sitio tenemos diversos circuitos, siendo los más recomendados los que hacen uso del circuito integrado7805.





CI-1, CI-2 - 7447 - circuitos integrados TTL

CI-3, CI-4 - 7475 - circuitos integrados TTL

CI-5, CI-6 - 7490 - circuitos integrados TTL

 DI1, DI2 - displays de 7 segmentos de ánodo común

R1 a R14 - 270 ó 330 ohms - resistores de 1/8 W

Varios:

Placa de circuito impreso, fuente de 5 V, hilos, soldadura, etc.
