Circuito Con Válvula Thyratron (V059S)

Written by: Newton C. Braga
Category: Mundo de las válvula



Las válvulas Thyratron o Tiratron son los equivalentes antiguos de los modernos SCR. Una vez disparadas, incluso después de que desaparece el reloj, siguen conduciendo la corriente.

El circuito mostrado sirve para demostrar el funcionamiento de este tipo de dispositivo, así como para comprobar su funcionamiento.

Con el cursor en el punto B, llega el instante en que se alcanza la tensión de disparo y luego la válvula conduce encendiendo la lámpara. La lámpara es del tipo de 220 V con 4 o 5 W de potencia.

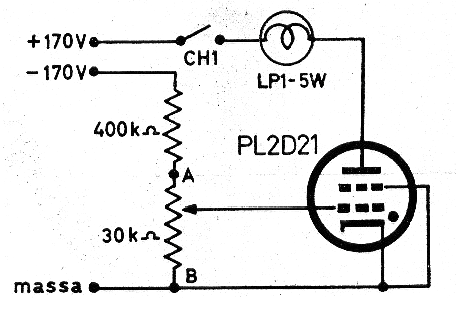

Una fuente simétrica de 170 V debe ser usada para alimentar el circuito. En la figura 1 tenemos el diagrama completo del aparato de prueba y demostración.





Circuito Con Válvula Thyratron
Circuito Con Válvula Thyratron
