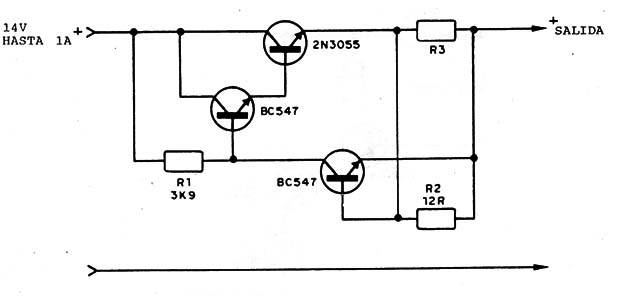

EI valor de la corriente está dado por R3. Para 100 mA, será de 12 ohm. Para 500 mA será de 1,2 ohm y para 1 A será de 0,68 ohm. El transistor debe montarse con disipador de calor.
Limitador de Corriente
EI valor de la corriente está dado por R3. Para 100 mA, será de 12 ohm. Para 500 mA será de 1,2 ohm y para 1 A será de 0,68 ohm. El transistor debe montarse con disipador de calor.
