Flip Flop rcon clock 7400 (CIR20694S)

Written by: Newton C. Braga
Category: Banco de circuitos

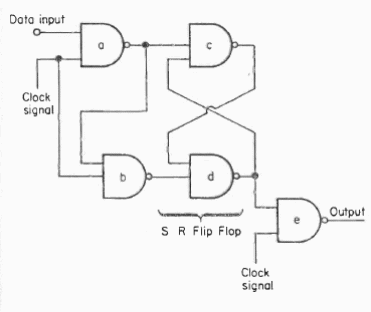

Este circuito TTL utiliza 5 puertas NAND de circuitos integrados 7400. Debe ser alimentado con 5 V.



Flip Flop rcon clock 7400
Flip Flop rcon clock 7400
