Fuente de alimentación simétrica simple 13 V (CIR20170S)

Written by: Newton C. Braga
Category: Banco de circuitos

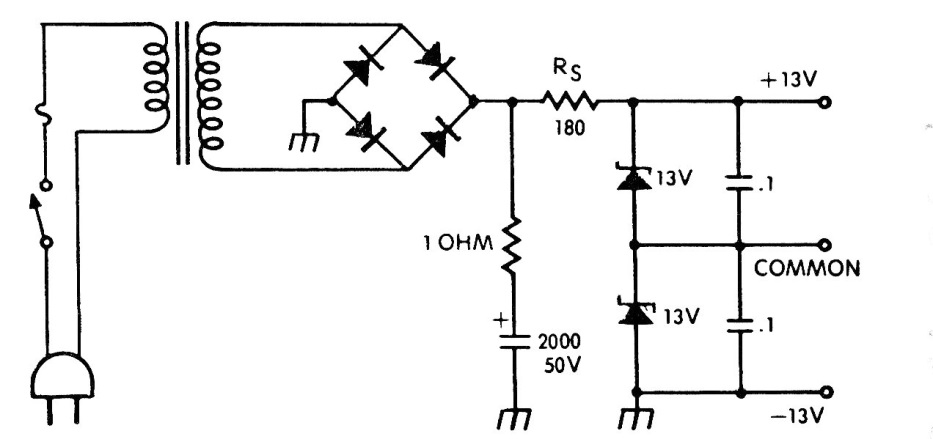

Esta sencilla fuente de alimentación está regulada por dos diodos Zener que, para una corriente de hasta 200 mA, puede ser de 1W. Los diodos de la fuente son 1N4002 y el transformador tiene un secundario de 12 V.



Fuente de alimentación simétrica simple 13 V
Fuente de alimentación simétrica simple 13 V | Haga click en la imagen para ampliar |
