Crowbar con SCR (CIR17551S)

Written by: Newton C. Braga
Category: Banco de circuitos

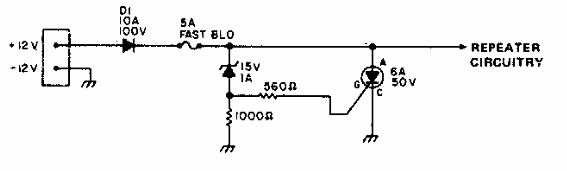

Este circuito de protección se dispara cuando se quema el fusible si la tensión de entrada excede el valor determinado por el diodo Zener. El SCR puede ser el TIC106 o equivalente dependiendo de la corriente de disparo.
