Astable con operacional (CIR15123S)

Written by: Newton C. Braga
Category: Banco de circuitos

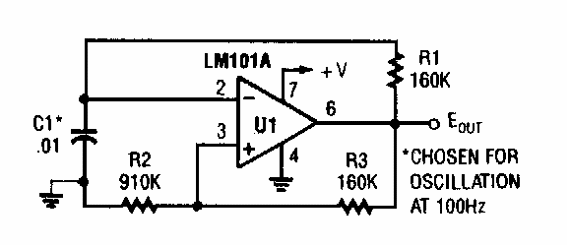

    Encontrado en una Popular Electronics de los años 90, este circuito se aplica a casi cualquier amplificador operacional. Con los valores de los componentes indicados, la frecuencia es de 100 Hz.



Astable con operacional
Astable con operacional
