Ecualizador de octava (CIR15097S)

Written by: Newton C. Braga
Category: Banco de circuitos

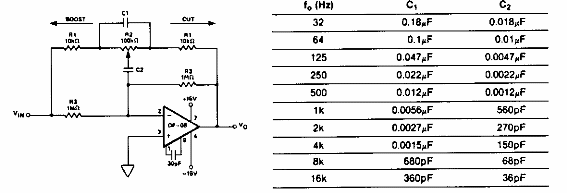

    Encontrado en la documentación de Precision Monolithics de los años 90, este circuito iguala las señales de octava determinadas por los valores del capacitor de acuerdo con la tabla al lado del diagrama.



Ecualizador de octava
