Convertidor de frecuencia para tensión de precisión (CIR13681S)

Written by: Newton C. Braga
Category: Banco de circuitos

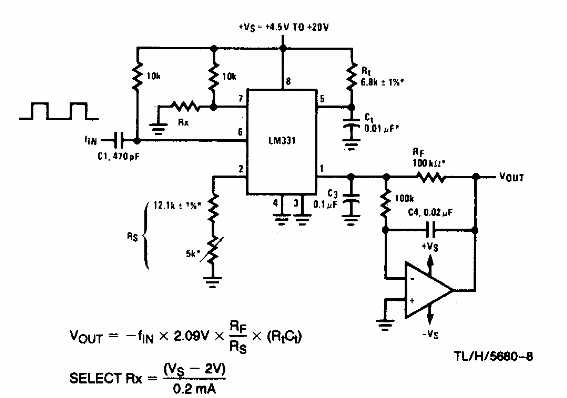

    Este circuito tiene una frecuencia máxima de 10 kHz y una linealidad mejor que 0.01%. El circuito es de una documentación de los 80 que hace uso de integrado de la época.



Convertidor de frecuencia para tensión de precisión
