Generador de ruido rosa (CIR11801S)

Written by: Newton C. Braga
Category: Banco de circuitos



     El circuito integrado utilizado en esta aplicación de los años 70 es poco común hoy en día, pero sabiendo que genera una señal rectangular rica en armónicos, se puede resolver una configuración equivalente con componentes modernos. La alimentación se debe suministrar con baterías para evitar problemas de ruido.



Generador de ruido rosa

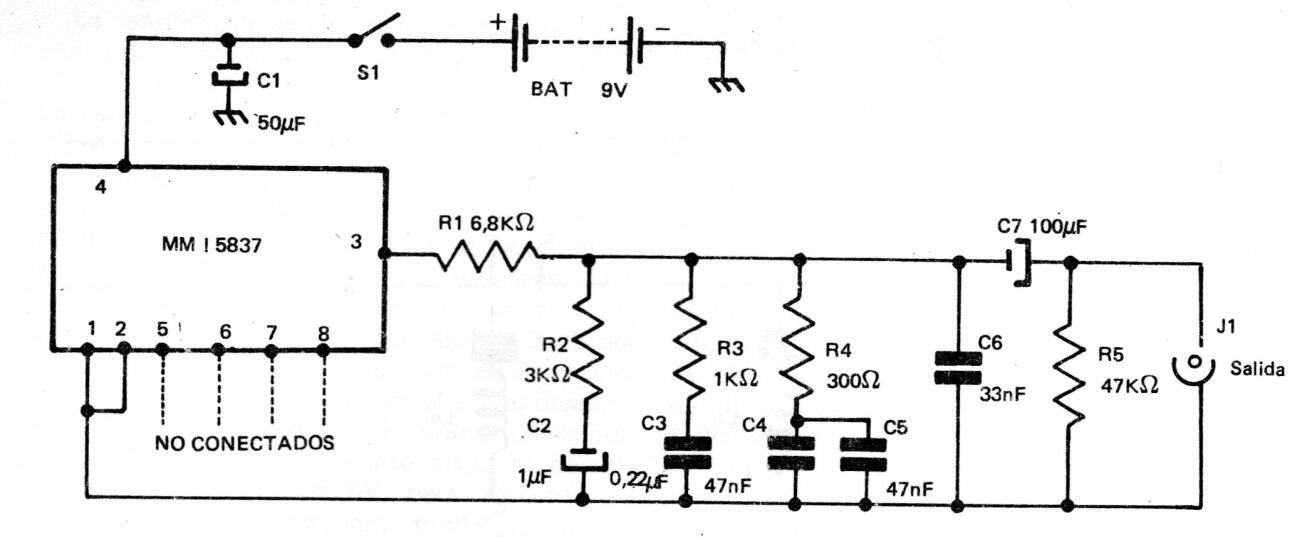

Generador de ruido rosa | Haga click en la imagen para ampliar |
