Fuente negativa y positiva de 12 V (CIR11812S)

Written by: Newton C. Braga
Category: Banco de circuitos



    Esta fuente de corriente simétrica de 100 mA se ha encontrado en una documentación antigua. El transformador es de 9 V y la fuente no tiene regulación. Se pueden agregar Zeners en paralelo con la salida de acuerdo con la tensión deseada.



Fuente negativa y positiva de 12 V

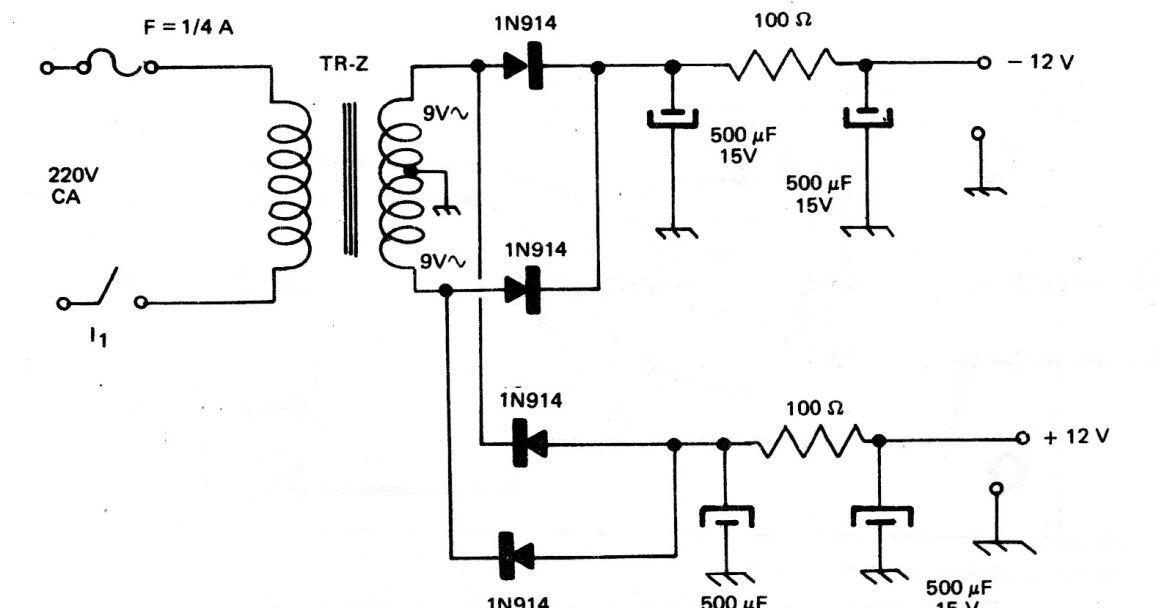

Fuente negativa y positiva de 12 V | Haga click en la imagen para ampliar |
