Inyector y Trazador de Señales (CIR10939S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Este inyector y trazador (seguidor) de señales fue encontrado en una antigua documentación americana. Los transistores pueden ser de uso general y la alimentación se realiza con una o dos pilas comunes.



Inyector y Trazador de Señales

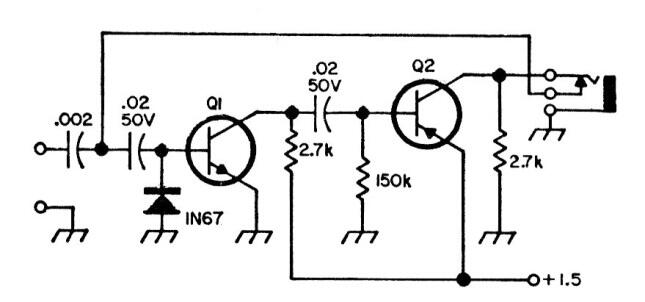

Inyector y Trazador de Señales | Haga click en la imagen para ampliar |
