Dimmer con SCR (CIR7637S)

Written by: Newton C. Braga
Category: Banco de circuitos

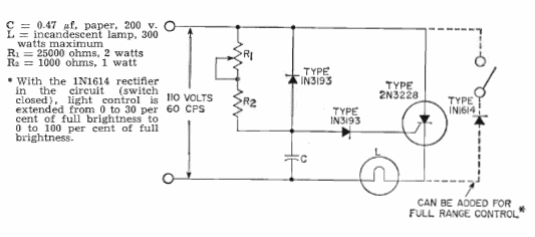

    Esta configuración tradicional de dimmer para lámparas incandescentes y elementos de calentamiento se ha encontrado en un manual de transistores RCA. El SCR puede ser un equivalente más moderno como el TIC106, según la red de energía.
