Simple Receptor de 1 transistor (CIR690S)

Written by: Newton C. Braga
Category: Banco de circuitos

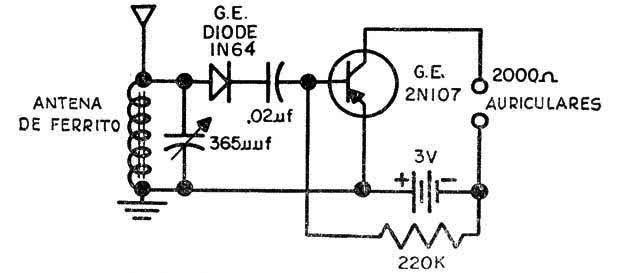

     Este radio de onda media es de una documentación de 1958. El transistor es de germanio y la bobina tiene un total de 100 vueltas de alambre de 26 o 28 en una barra de ferrita. La antena debe ser de al menos de aproximadamente 5 metros.
