Oscilador LC con amplificador operacional (CIR6782S)

Written by: Newton C. Braga
Category: Banco de circuitos

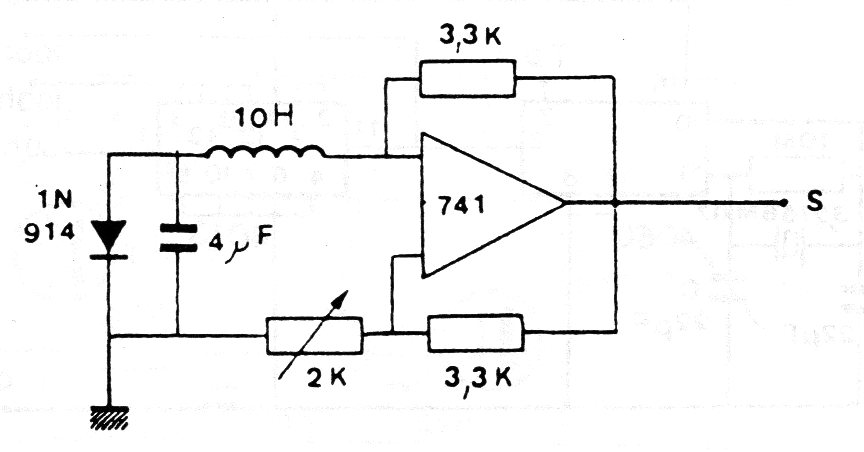

    Este interesante circuito fue encontrado en una publicación antigua francesa. La alimentación debe ser simétrica y el límite de frecuencia para la señal generada depende del funcionamiento. Para el 741 está alrededor de 100 kHz.




| Haga click en la imagen para ampliar |
