Receptor Superheterodino de FM (CIR6160S)

Written by: Newton C. Braga
Category: Banco de circuitos

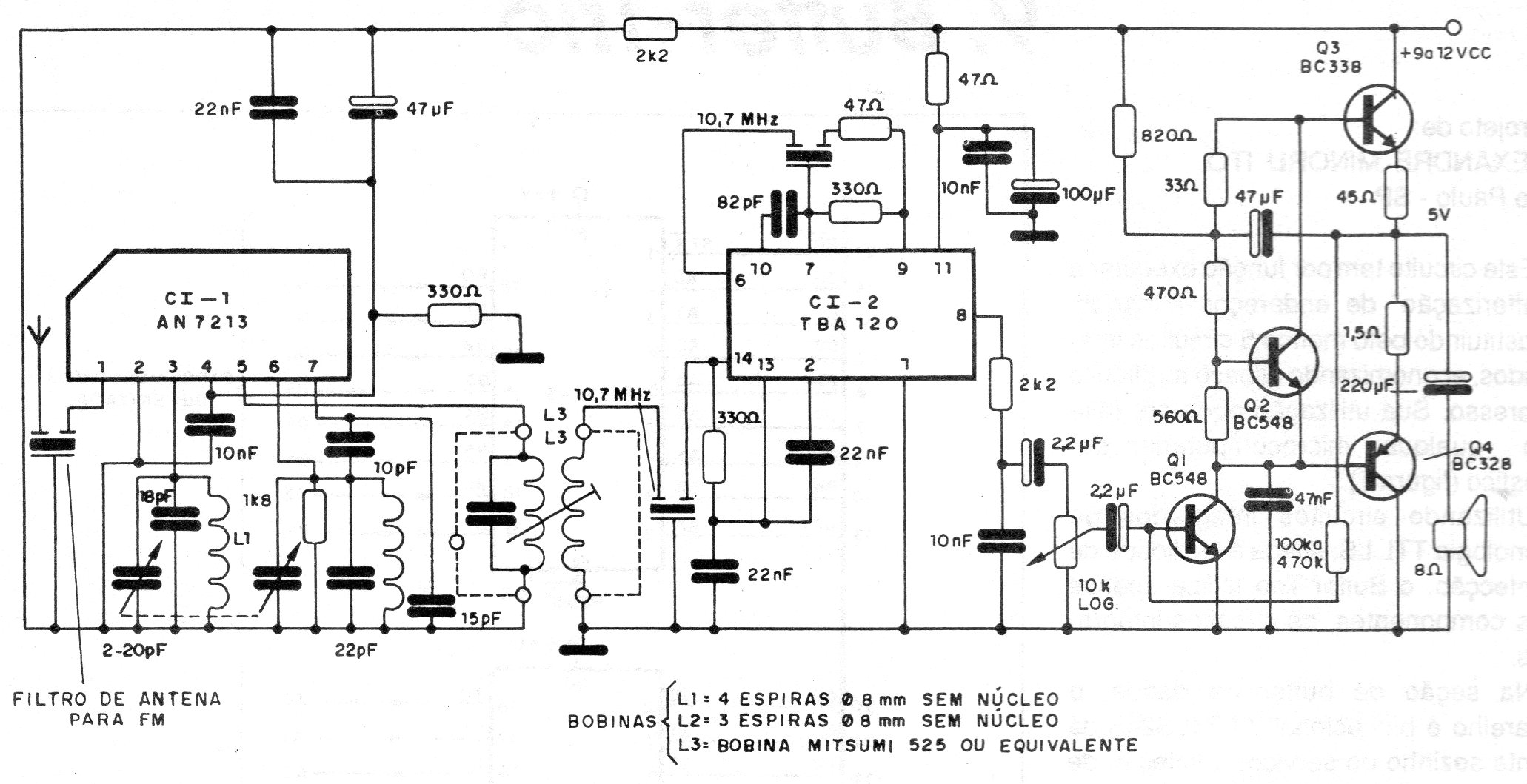

     Los circuitos integrados usados en este proyecto de 1989 son poco comunes actualmente, incluso la bobina de FI que eventualmente puede ser aprovechada de una radio fuera de uso. El circuito tiene una configuración comercial de excelente sensibilidad y selectividad.L1 tiene 4 espiras de hilo 18 en forma de 8 mm sin núcleo y L2 tiene 3 espiras del mismo hilo en forma de 8 mm sin núcleo.
