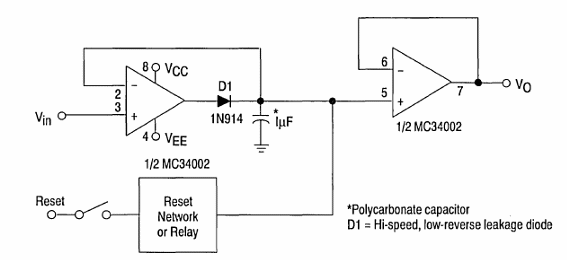

Detector de Pico Positivo MC34001 (CIR4724S)

Written by: Newton C. Braga
Category: Banco de circuitos



      También se pueden utilizar otros operativos de la misma familia como el MC34002, MC35001, MC34004 y MC35004. El circuito es del Linear Interfaz IC de Motorola de 1993. La fuente de alimentación debe ser simétrica.
