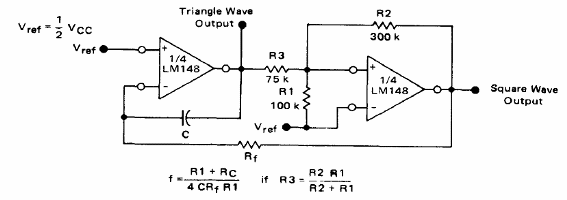

Generador de funciones (CIR2123S)

Written by: Newton C. Braga
Category: Banco de circuitos



   Este circuito es del Linear Databook de Motorola de 1990 pudiendo ser implementado con otros operacionales. La fuente de alimentación debe ser simétrica.
