Amplificador de 1 y 2 W (CIR5410S)

Written by: Newton C. Braga
Category: Banco de circuitos

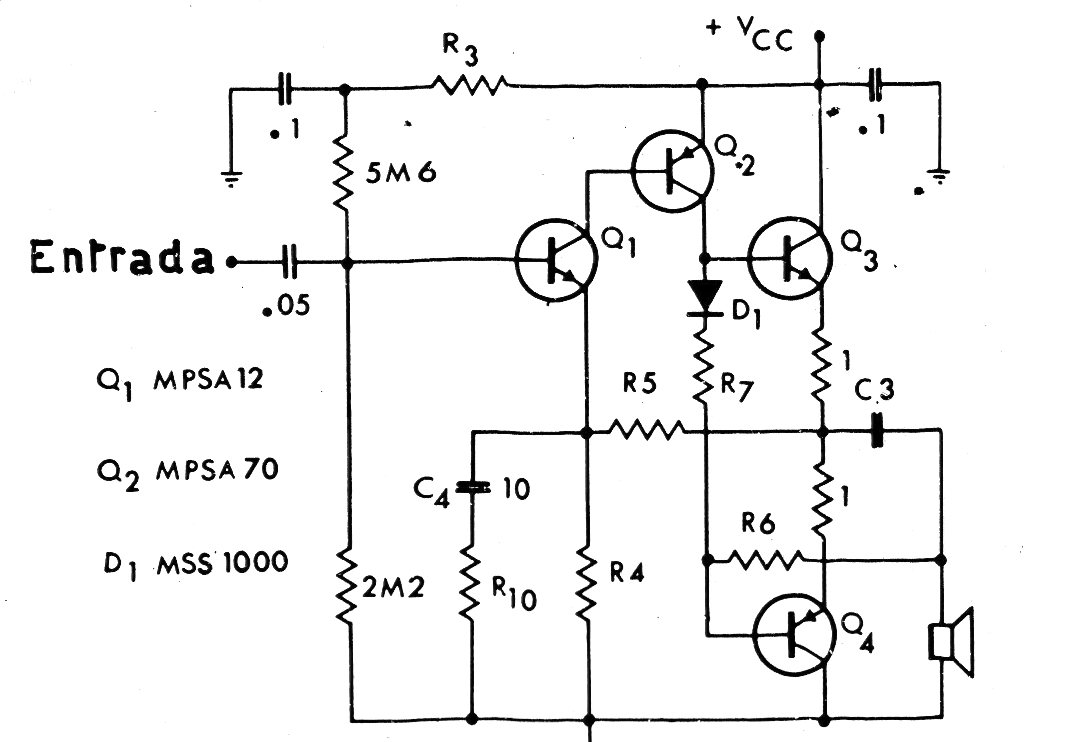

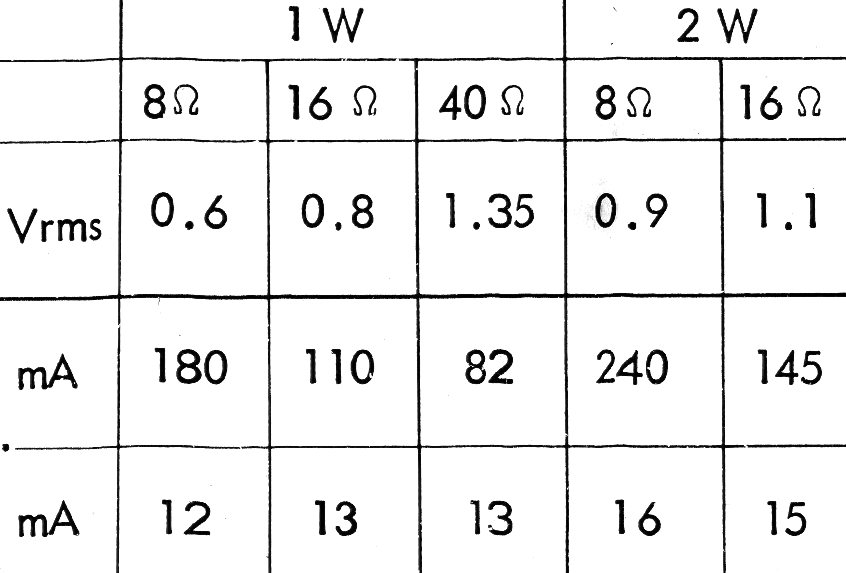

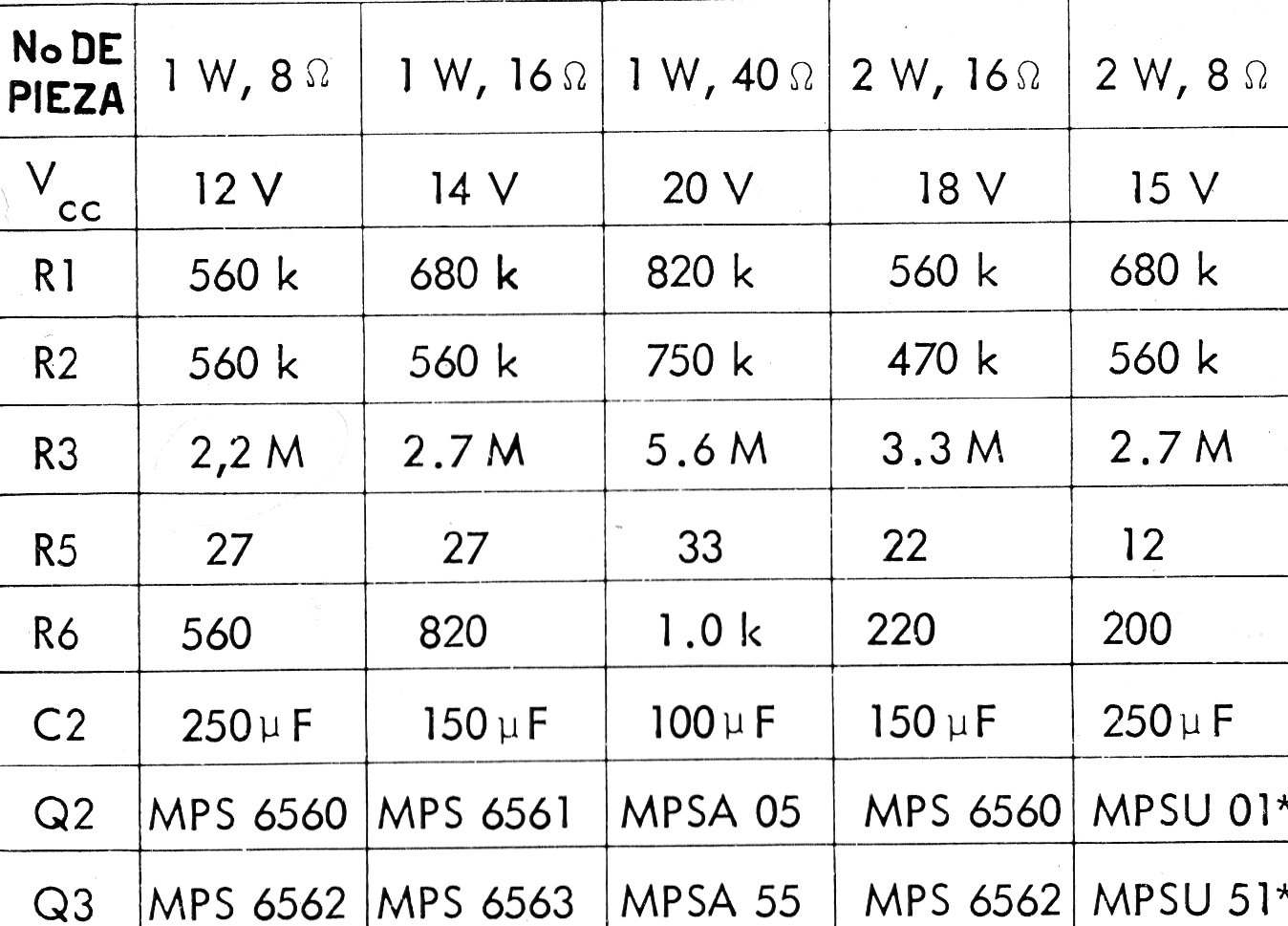

    Este circuito es de un manual de amplificadores de Motorola de 1972. Los transistores no son muy comunes actualmente, pero para la salida se puede utilizar el par BD135 y 136 sin problemas. Para Q1 y Q2 se pueden utilizar los BC557 y BC547. La impedancia del altavoz puede ir de 4 a 40 ohms. La fuente debe proporcionar al menos 250 mA que es la corriente máxima para la versión de 2 W con 8 ohms.
