Amplificador RTD (CIR5218S)

Written by: Newton C. Braga
Category: Banco de circuitos

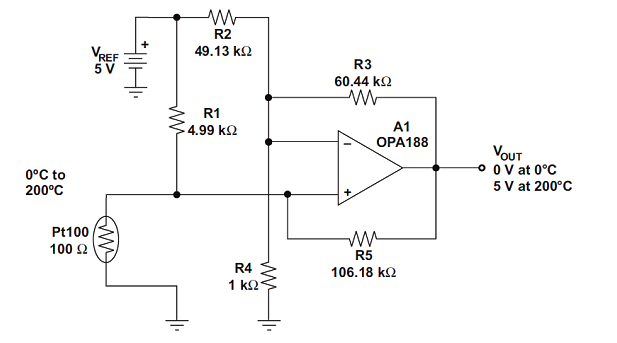

Este circuito fue encontrado en una publicación técnica de 2011 de Texas Instruments. Se trata de un amplificador para sensor RTD de temperatura con precisión que depende de las resistencias utilizadas. La fuente de alimentación para el amplificador operacional debe ser simétrica. El circuito se destina a la medida de temperatura en el rango de 0 a 200º C. La salida es de 0 V con una temperatura de 0o C y de 5 V con 200º C.
