Amplificador Para Instrumentación (CIR5388S)

Written by: Newton C. Braga
Category: Banco de circuitos

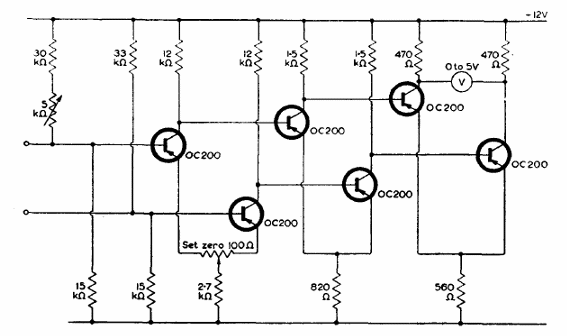

    Este circuito con transistores de germanio es de 1960 habiendo sido encontrado en el manual de aplicaciones de transistores de la Mullard de 1960. El circuito puede ser adaptado para utilizar transistores más modernos.
