Detector de Pico (CIR4407S )

Written by: Newton C. Braga
Category: Banco de circuitos

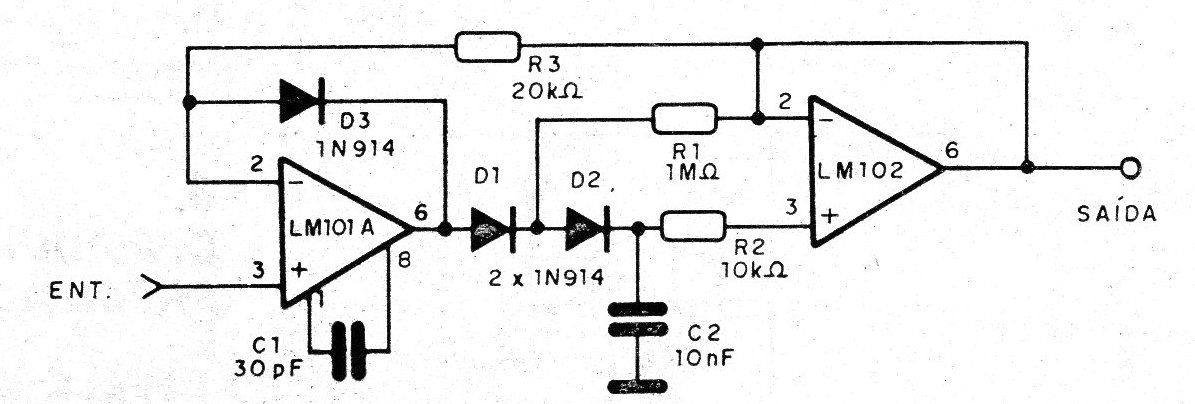

    El circuito de la figura utiliza dos amplificadores operacionales, un LM101A y un LM102. Los diodos admiten equivalentes y los resistores no necesitan ser de precisión. La fuente de alimentación debe ser simétrica.
