Disparador Schmitt de alta velocidad (CIR2055S)

Written by: Newton C. Braga
Category: Banco de circuitos

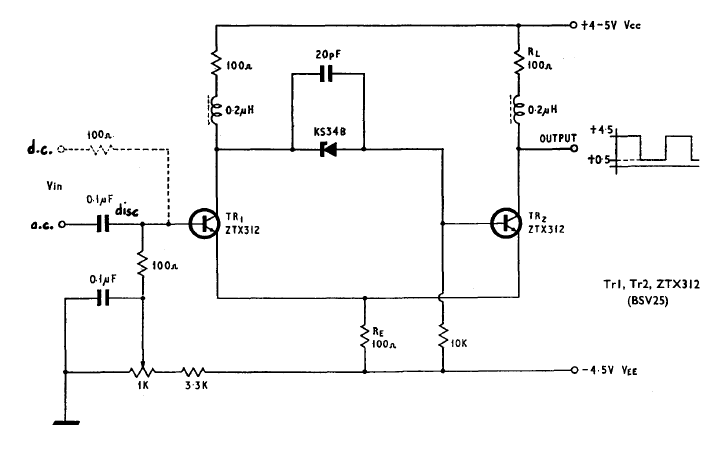

     El circuito presentado puede operar en frecuencias de hasta 50 MHz. Encontramos esta configuración en el manual de transistores de Ferranti. Se pueden utilizar transistores conmutadores equivalentes como los 2N2222.




| Haga click en la imagen para ampliar |
