Oscilador con Diodo Túnel de 3 a 260 MHz (CIR969S)

Written by: Newton C. Braga
Category: Banco de circuitos

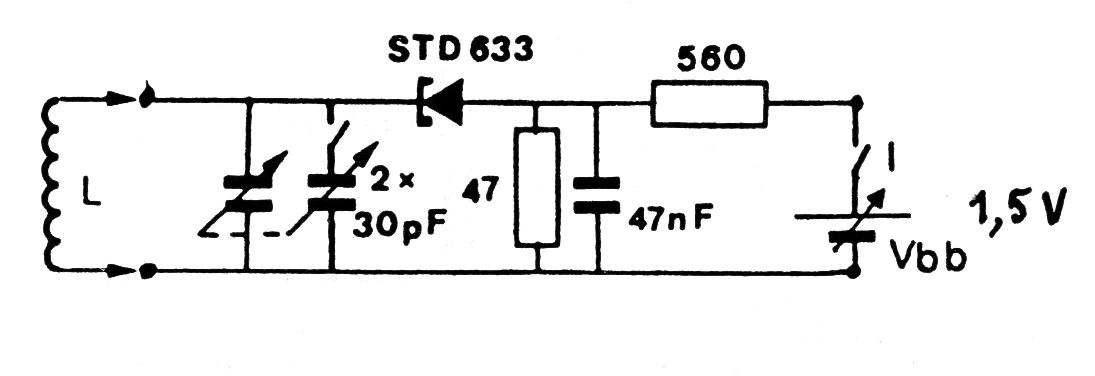

     Este circuito se encuentra en una documentación de los años 80 y requiere una fuente de alimentación variable de 0 a 1,5 V. La potencia es muy baja y la frecuencia depende de la bobina utilizada.




| Haga click en la imagen para ampliar |
