Foto Disparador con Darlington PNP (CIR5351S)

Written by: Newton C. Braga
Category: Banco de circuitos

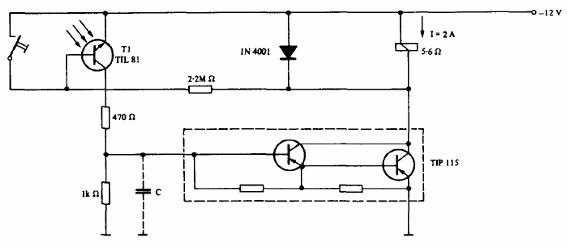

    Este circuito fue encontrado en un manual de opto electrónico de Texas. Observa la polaridad de la alimentación. Otros transistores de la serie TIP se pueden utilizar según la corriente de carga. La llave hace el reset del circuito.
