Indicador de subtensión (CIR1854S)

Written by: Newton C. Braga
Category: Banco de circuitos

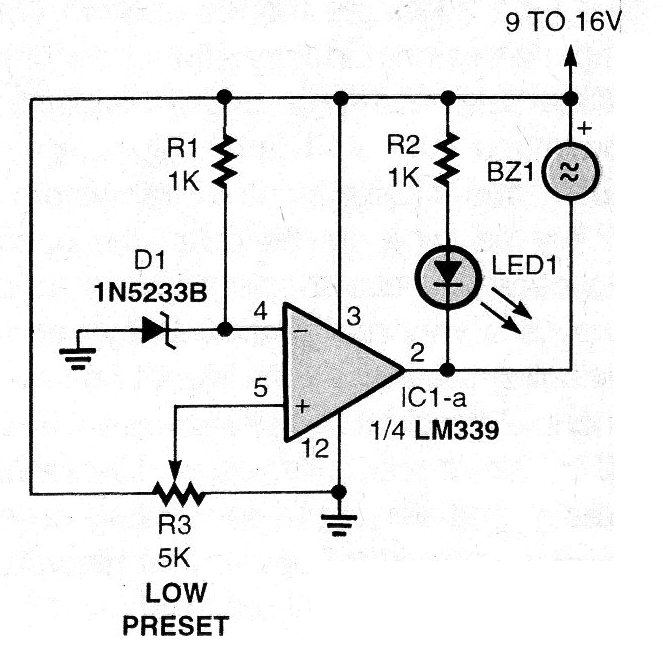

Cuando la tensión que alimenta el circuito cae por debajo del valor del zener, el LED se enciende, y si se utiliza un bocadillo de baja corriente, se activa. El circuito es de una publicación americana de 1999.




| Haga click en la imagen para ampliar |
